Family days and fiberglassing completed

Boatbuilding has taken a back seat this month for a much more important project … the wedding of our youngest daughter, Haley. It was a terrific day and we are thrilled to have a new addition to the family, Sam.

parents-camerahaleys-wedding-2016-232

The long-awaited big day: Our youngest, Haley and our newest addition to the family, Sam.

Prior to the wedding we were able to complete the outboard motor mount and hull step which is fabricated on the inner side of each hull, and fiberglass the hull.

img_2168-1

Hull sanded & prepped for fiberglassing.

img_2170-1

Keel glued and faired to hull

img_2155

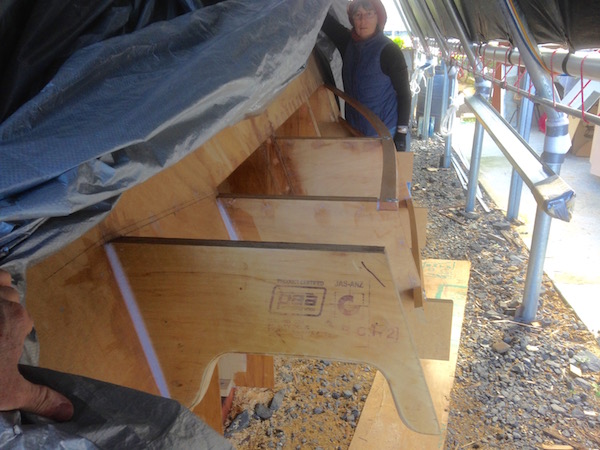

Outboard mount & step.

This assembly has three primary functions. It provides mount points for the auxiliary motors and is a step from the main saloon down into the hulls. It also stiffens the hulls and spreads the torque loads of the motors.

img_2160

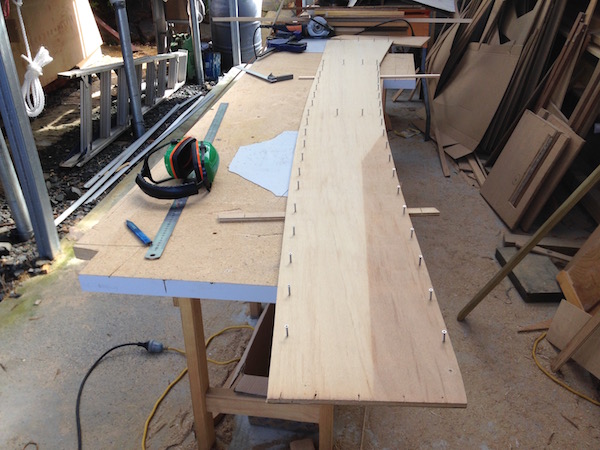

Outboard mount sheeting ready for offering to hull

img_2157

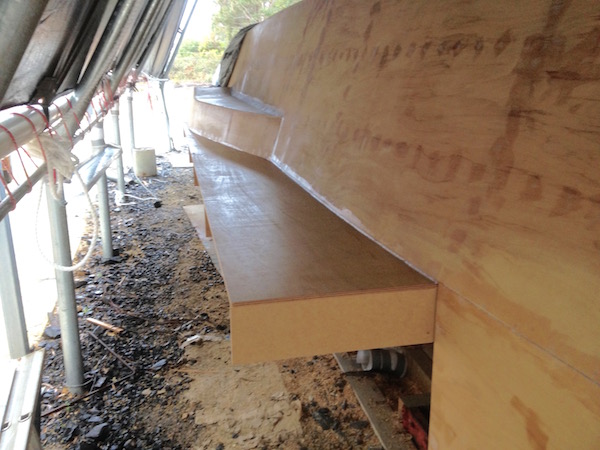

Sheet glued and screwed

img_2165

Bridge deck ready for gluing. This section is the guest cabin bed and extends into the hull.

img_2177-1

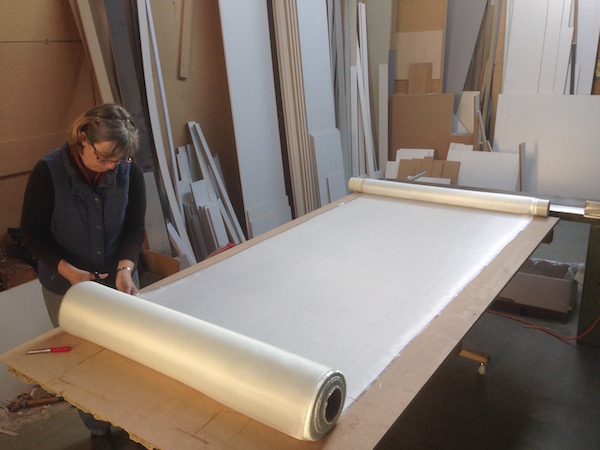

Preparing the fiberglass. We rolled 4.2 metre lengths onto a length of PVC pipe and rolled onto the hull.

Fiberglassing was a big job. We chose to cut the 1m wide x 200 GSM roll into manageable 4.2m lengths for ease of handling. It was relatively stress free, and for once we were thankful for the cooler Tasmanian temperatures for giving us plenty of working time with the epoxy. We used a combination of squeegee’s and 115mm disposable mohair rollers to wet out the cloth.

img_2178-1

Fiberglassing the hull

img_2192

Hull outboard side fiberglassed and taped. Pete devised a trolley system to roll out the tape.

The fiberglass is used in various ways. In some places it is bulked up in multiple layers to provide structural rigidity. In others its only a waterproof layer and has no structural purpose. The chines are all doubled up with fibreglass tape for abrasion resistance from ropes and lift-out slings. We were carefull to work exactly to the layouts specified in the plans. Potential stress points are well-known and accommodated for in the plans, with over a hundred of the Easy family of boats on the water.

img_2194

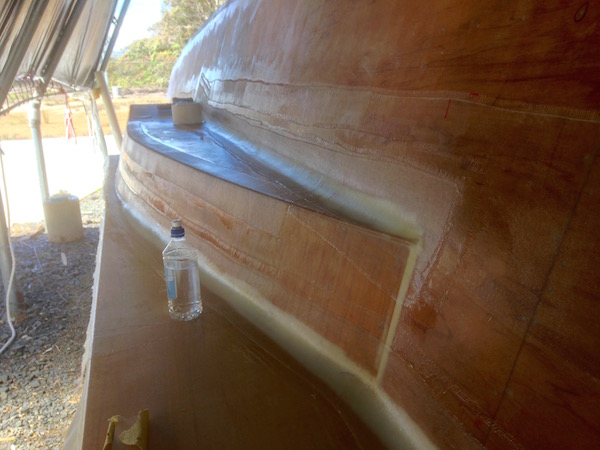

Hull inboard side showing multiple layers of fiberglass tape re-enforcement.
