Roll over day happens

At 10 am yesterday (Sat) around 20 people turned up to help us turn the hulls & bridge deck over. We were grateful that so many turned out to help us.  A mixture of interested locals, acquaintances, friends and relatives.

It was a three stage process. Firstly the bridgedeck, which was built upside down, was carried out and flipped over. Then the formwork that supported the bridge deck was lifted out to make space. We then had room to roll the hulls and manoeuvred them into position onto the concrete pads we had prepared a year ago. These pads are 2.4m x 300mm wide and were poured as accurately as possible to ensure the hulls were level with each other. They were incorporated into the strongback that supported the hulls during construction. This was necessary, in our instance, as we are building in an outdoor site on uneven ground. When building in a shed the keels can sit straight onto the concrete floor with packers to account for any unevenness of the floor.

Some have asked us about our decision to build outdoors. In an ideal world, we would have loved to be in a warm shed, but in the end, one has to grasp the opportunities that present themselves and just go for it. We have been very blessed to have the space that has been made available to us, with the kind generosity of Deb’s brother and sister-in-law for the building space, and Deb’s parents for somewhere to live. In many respects this is a family project for without the support of our family, we would not have been able to make it happen.

We braced the hulls with temporary supports, and then moved the formwork and bridgedeck back into position. This will then enable the two of us to jack the bridge deck up the remaining 300mm to secure to the cross beams.

The whole operation took a bit over an hour, slightly longer than we expected, but quite acceptable given the scale of things.

Refreshments were prepared and quite a number stayed around, enjoying the sunny day and company.

Pete and Deb spent the remainder of the afternoon, tidying up the site, weather proofing with tarps and generally acquainting ourselves to our new reality. It was a somewhat surreal experience for us as we considered our new surroundings. This is the wonder of boat building as once again we switch gears. More woodworking, and detailed carpentry. Less fiberglass, Qcell, sanding and painting …at least for now.

IMG_1632

First the bridge deck was lifted out to make space.

IMG_1641

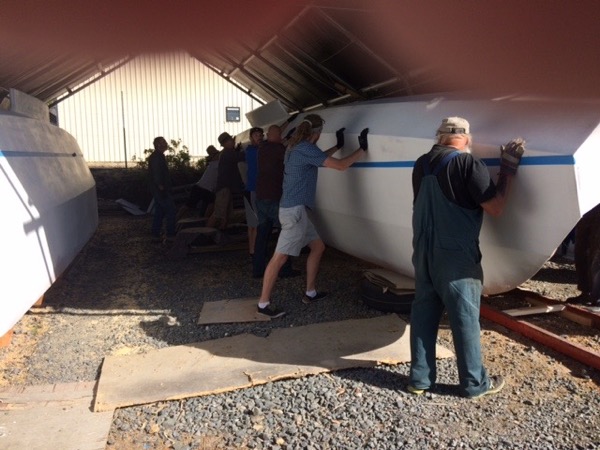

Starboard hull goes over.

Window

The rudders were fitted before the hulls were lifted upright.

IMG_3903

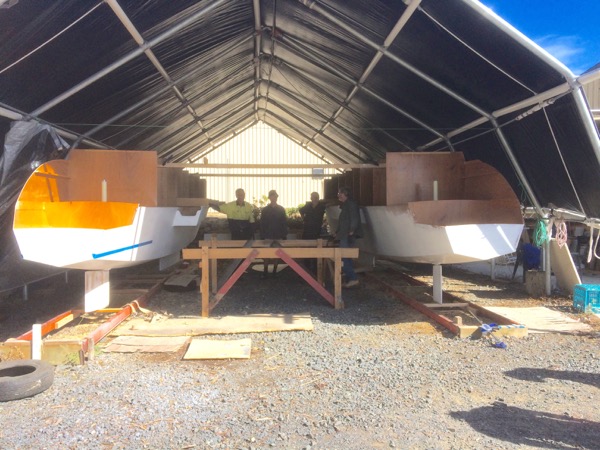

The formwork lifted back in place …

Window 2

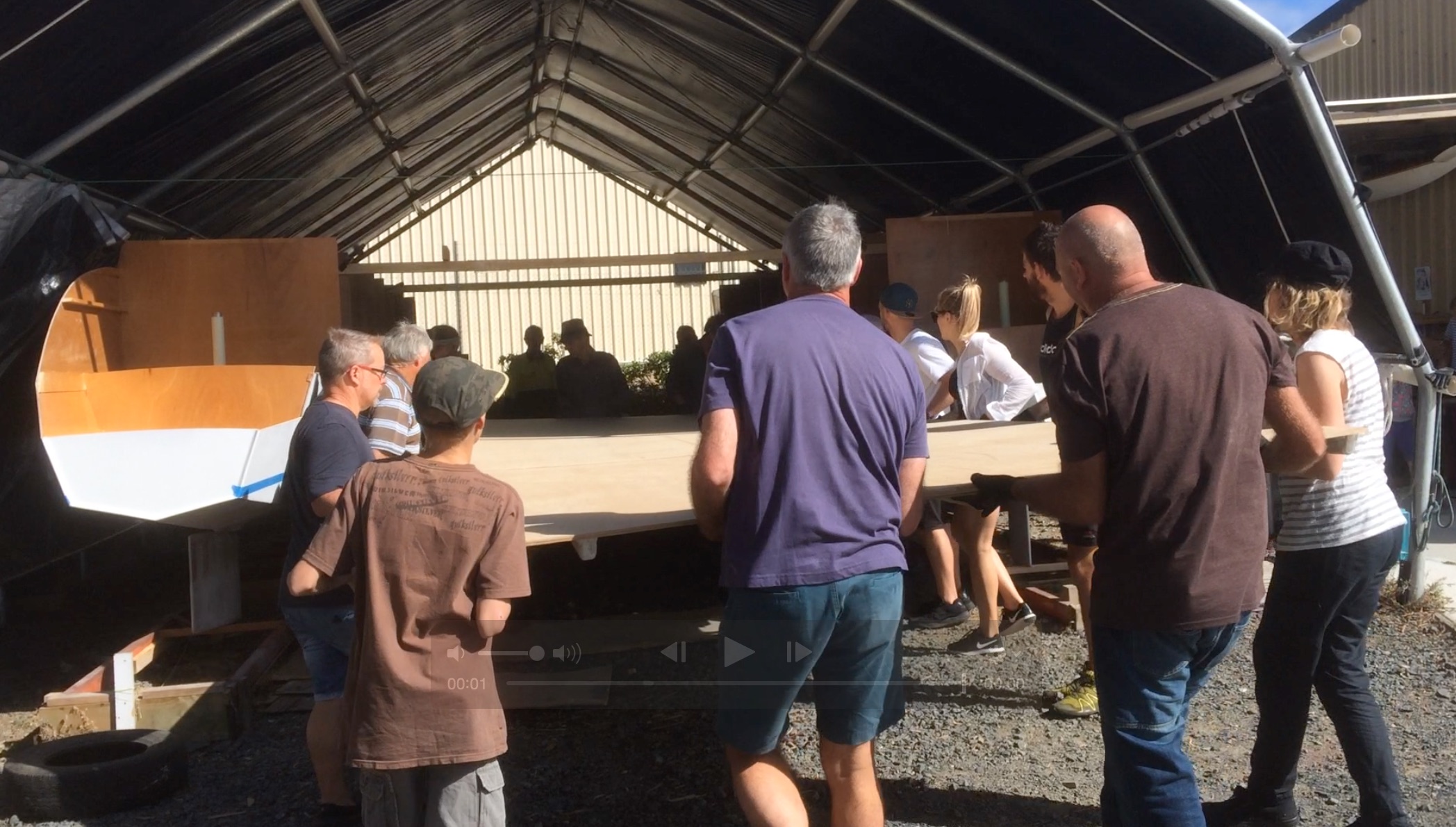

ready to receive the inverted bridge deck.

IMG_2466

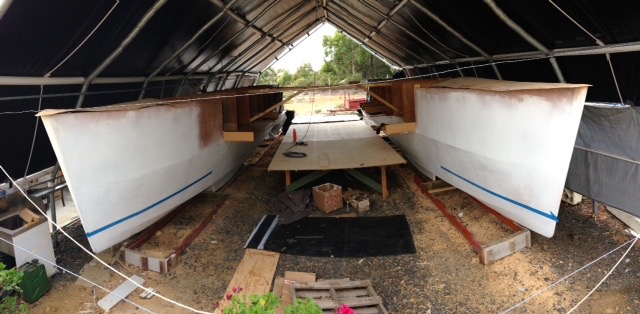

Those bow decks are about 2.4 meters from the ground. We fitted temporary decks against wind-blown rain. Winter is around the corner with its wild westerlies.

IMG_2467

The bridge deck will eventually be offered up to span the hulls.

IMG_2469

The concrete pads we poured in preparation for this day, a year ago.

2 thoughts on “Roll over day happens

  1. svtakeiteasy says:

    Fantastic to see Selah or part of the right way up! We were thinking of you and hoping you had good weather.
    When we look at the tarp roof it seems really low now. How will you manage once you work on the bridge deck and cabin?

    Like

  2. selahcat says:

    Bit of a story there actually Chris… We built it to dimensions supplied to us, only to discover later that it’s a bit to low! Fortunately (we’re told) the fix is not too hard, lift one side by about 600mm. Its not concreted to the ground: just pegged, as its a temporary structure. We think we will be OK until the turret which is a fair way down the track, so it goes on the back burner until then! After then the shelter can go down.

    Liked by 1 person
